DMS-302 V1 Digital RGB Stereo VU Meter Module for Music Audio

DMS-302 V.1 Digital RGB Music Stereo VU Meter Module

Please carefully consider purchasing this VU Meter module. There are five variants:

• DMS-302 20 LED
• DMS-302 30 LED
• DMS-302 40 LED
• DMS-302 50 LED
• DMS-302 60 LED

The 20 LED module is only suitable for use with 20 LEDs.
If used with more than 20 LEDs, only 20 LEDs will light up. Conversely, 30-LED or 60-LED modules are not suitable for use with 20-LED, 40-LED, or 50-LED modules.
Therefore, please calculate the number of LEDs you want to use first.

For more details, please watch the video.

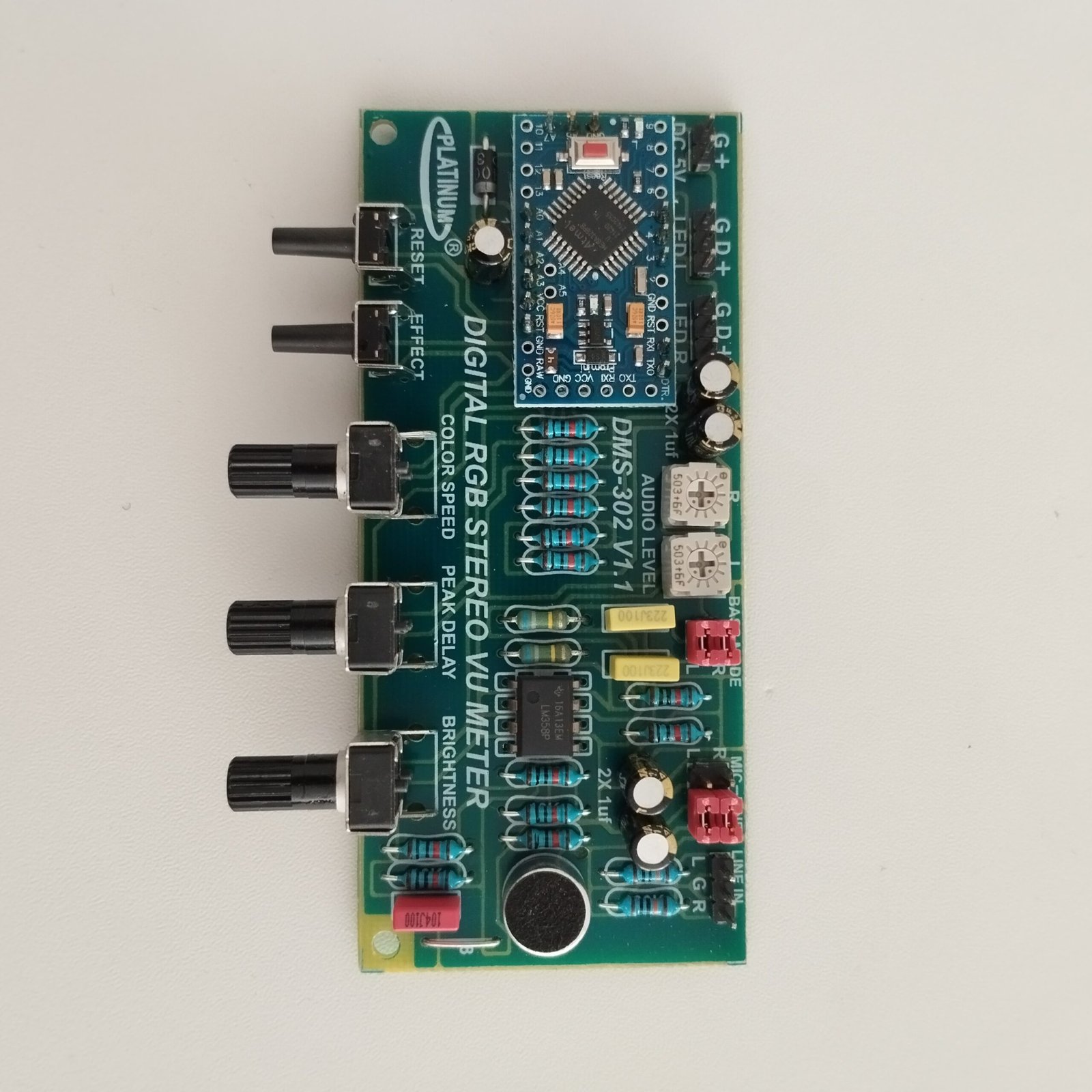

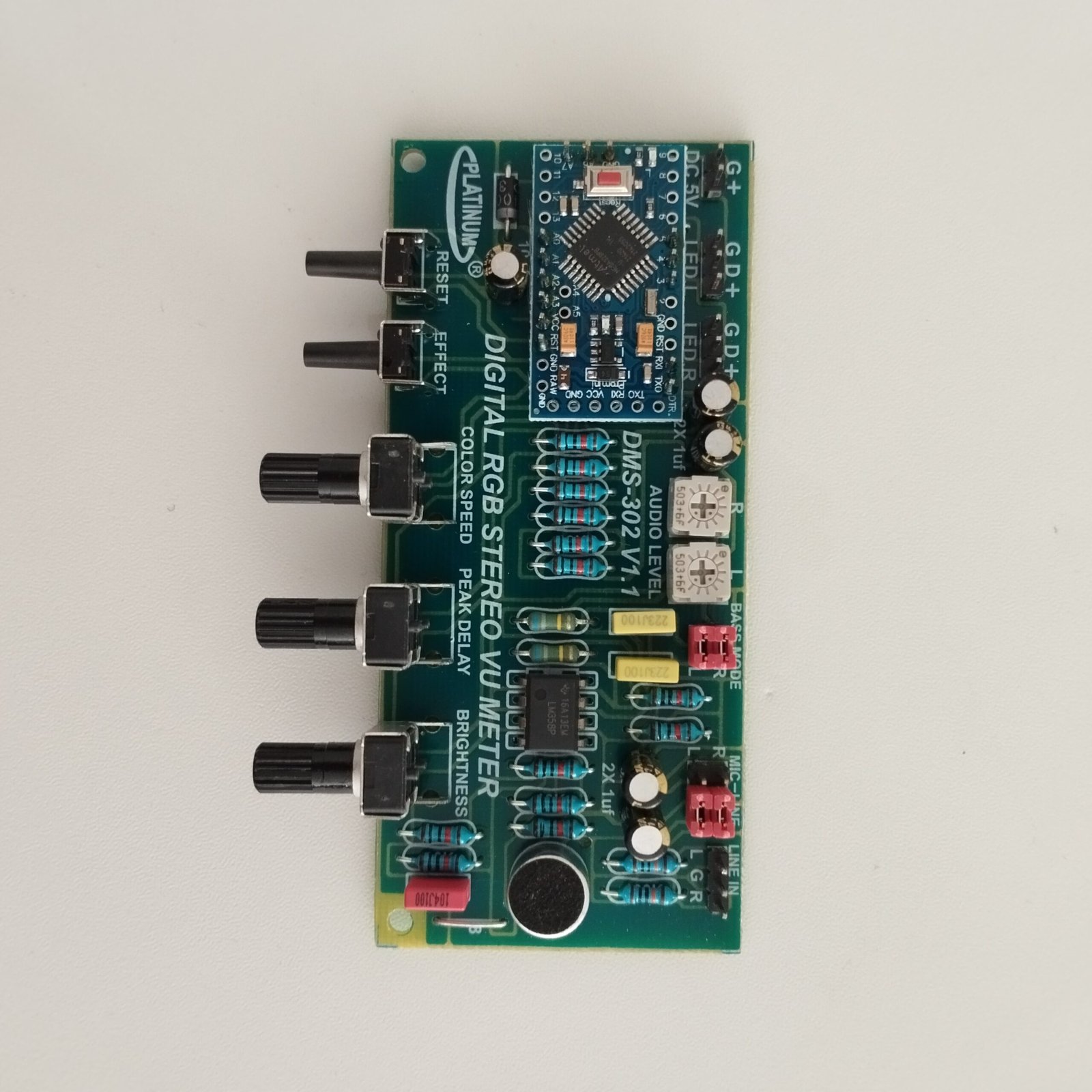

PUSH BUTTON 1: RESET
PUSH BUTTON 2: MANUAL EFFECT SELECT
POT.1: EFFECT SPEED
POT.2: PEAK HOLD
POT.3: BRIGHTNESS

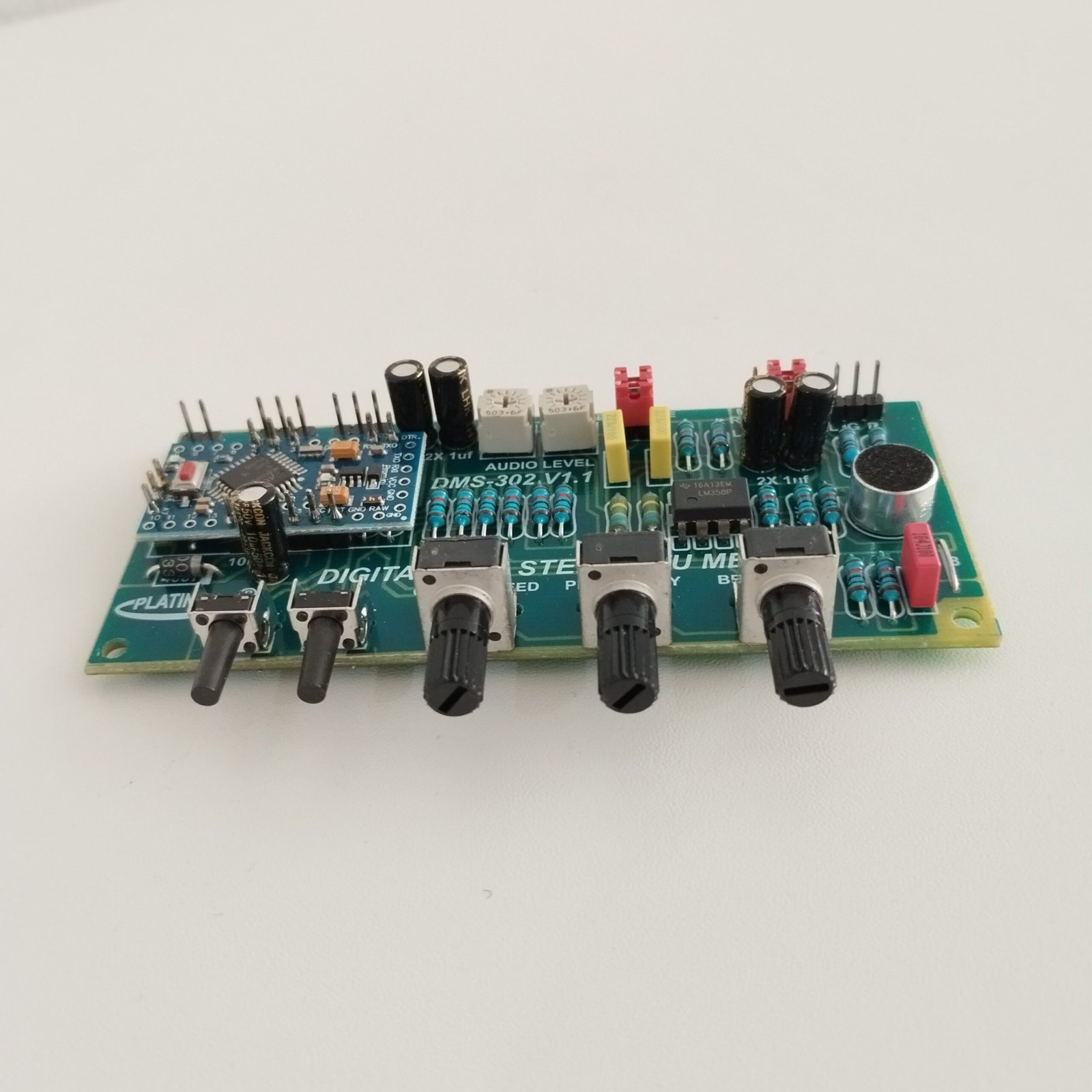

Digital RGB Stereo VU Meter DMS-302 V.1
* 8 VU Meter Effects and 8 Animation Effects.
* Animation will appear when the music stops. (Automatically turns on when there is music)
* Supports auto-sensitivity for audio input.
* Supports a microphone that functions as a sound sensor (the LED light will light up according to the sound in the room).
* Supports WS2812/WS2812B LED strip lights
* Power supply/DC adapter 5 Volt 3A-5A
